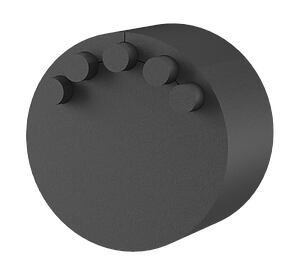

Interchangeable insert

for cable seal at the end of the spiral hose

WE100 z/d

Configurator

Interchangeable insert - for cable seal at the end of the spiral hose

For installation in the KES-M 90-WE sleeve and to seal cables with the rubber press method at the end of the Hateflex spiral hose 14090.

Interchangeable insert - for cable seal at the end of the spiral hose

Facts

Advantages:

The interchangeable insert is installed after the cables have been laid
The entire cross-section of the empty conduit system is used when cables are laid

Scope of delivery:

Blind plugs

Dimensions:

OD: 100 mm
Sealing width: 60 mm
Maximum configuration: e.g. 3/38 mm, 6/24 mm, 10/17 mm

Application range:

Waterproof concrete stress class 1

Material:

EPDM

Tightness:

gastight and watertight to 2.5 bar

Downloads

Installation instructions

HSI150 / KES MA150D / KES MA150 WE100/125/160 SG z/d (PDF, 9MB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Configurator

Your individual article designation:

Your individual article number:

We cannot guarantee the feasibility of the configuration you have entered. If you have sent an enquiry, we will then check the configuration you have chosen again.
