Building entries
Building entries  AccessoriesAccessories

Spiral hose

connection ADS 100 - FUBO - E

Hateflex14110/xG

Add to wish listAdd to wish list

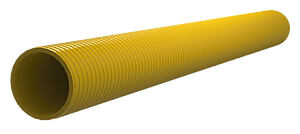

Spiral hose - connection ADS 100 - FUBO - E
USP
  • Pressure-tight flexible empty conduit system (external pressure 2.5 bar) with a smooth inner surface for gentle cable draw-in
The Hateflex spiral hose is a flexible and very stable cable duct. A pressure-tight cable entry system can be created with the associated connection components.
Spiral hose - connection ADS 100 - FUBO - E

Facts

Advantages:

  • High mechanical load capacity and flexibility
  • Empty conduit route without sleeve available up to 25 m
  • Empty conduit system that can be built over
  • Yellow colour - signal colour for gas service

Scope of delivery:

  • Coils in lengths of 25 m

Dimensions:

  • ID: 110 mm
  • OD: 125 mm

Properties:

  • Kink-resistant
  • Abrasion-resistant
  • Weather-proof, UV-resistant and rot-resistant
  • Resistant to brine and seawater
  • Resistant to many chemicals
  • Installation temperature from +5° to + 50°C

Material:

  • Hard PVC/soft PVC

Tightness:

  • gastight and watertight to 2.5 bar
Downloads

Installation instructions

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Length (m) Article code Article number GTIN
3.0 Hateflex14110/3000G 830010300 4052487130196
Download of data sheet and tender specification
title=
6.0 Hateflex14110/6000G 830010600 4052487130226
Download of data sheet and tender specification
title=
10.0 Hateflex14110/10000G 830011000 4052487130257
Download of data sheet and tender specification
title=
15.0 Hateflex14110/15000G 830011500 4052487130301
Download of data sheet and tender specification
title=
25.0 Hateflex14110/25000G 830012500 4052487121149
Download of data sheet and tender specification
title=

Configurator

Length (X):mm

Your individual article designation:

Your individual article number:

Tender specifications / PricesAdd to wish list
Download of data sheet
Tender specifications: Download TextTextDownload WordWord

We cannot guarantee the feasibility of the configuration you have entered. If you have sent an enquiry, we will then check the configuration you have chosen again.



Accessories

Universal gas end cap - for single-line building entry system ADS 100 - FUBO - E

Universal gas end cap

for single-line building entry system ADS 100 - FUBO - E

Connection sleeve - for extending the spiral hose

Connection sleeve

for extending the spiral hose

Sleeve - seals ADS 100 - FUBO on the earth side

Sleeve

seals ADS 100 - FUBO on the earth side

Pipe connection sleeve - for connecting smooth cable ducts

Pipe connection sleeve

for connecting smooth cable ducts

Sealing set interchangeable insert - for sealing the ADS 100 - FUBO on the earth side

Sealing set interchangeable insert

for sealing the ADS 100 - FUBO on the earth side
